Introduction

The CMSIS-Driver interface to STM32Cube HAL are API Shim interfaces for the STM32Cube HAL provided by STMicroelectronics. The Drivers are accessible by CMSIS-Pack enabled software development tools, for example µVision 5.40, VS Code Arm CMSIS Solution extension, and the CMSIS-Toolbox.

User applications and middleware components use CMSIS-Driver to achieve better code reuse and simplify integration in various ecosystems. CMSIS-Driver are generic and independent of a specific RTOS making it reusable across a wide range of supported microcontroller devices.

STM32 microcontrollers already provide powerful drivers, however with a different API interface, call STM32Cube HAL. With this Driver API Shim Interface the CMSIS standards can be used by the software ecosystem and application developers.

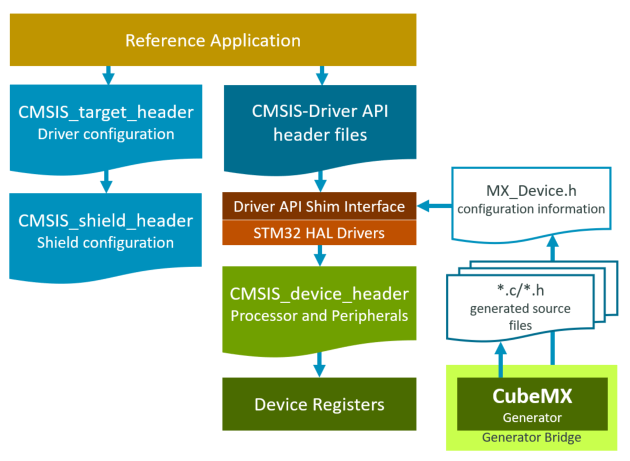

The diagram below outlines the software architecture that is used for example by Reference Applications and the MDK middleware examples. Refer to the CMSIS-Toolbox documentation Reference Applications - Header File Structure for a description of the various components in this diagram. The Driver API Shim Interface is configured using STM32CubeMX (CubeMX) that generates via the CMSIS tool integration the file MX_Device.h.

Available CMSIS-Drivers

  - component: CMSIS-Driver:Ethernet MAC     # Ethernet MAC Driver for STM32 devices
  - component: CMSIS-Driver:GPIO             # GPIO Driver for STM32 devices
  - component: CMSIS-Driver:I2C              # I2C Driver for STM32 devices
  - component: CMSIS-Driver:MCI              # MCI Driver for STM32 devices
  - component: CMSIS-Driver:SPI              # SPI Driver for STM32 devices
  - component: CMSIS-Driver:USART            # USART Driver for STM32 devices
  - component: CMSIS-Driver:USB Device       # USB Device Driver for STM32 devices
  - component: CMSIS-Driver:USB Host         # USB Host Driver for STM32 devices

Supported STM32 Device Families

The Driver API Shim implementations are using the STM32Cube HAL interface and therefore support a wide range of STM32 device families. Refer to the STM32 Device Family Packs for further details as some STM32Cube HAL implementations have inconsistencies.

Please feel free to raise an issue on GitHub to report misbehavior (i.e. bugs) or start discussions about enhancements. This is your best way to interact directly with the maintenance team and the community.

Driver Validation

The Driver API Shim implementations are validated using the CMSIS-Driver_Validation tests.

Usage

Add the following packs and components to your project.

  packs:
    - pack: Keil::STM32U5xx_DFP@^3.0.0        # choose the DFP that matches your device
    - pack: ARM::CMSIS@^6.0.0
    - pack: ARM::CMSIS-Driver_STM32

  components:
    - component: CMSIS:CORE                   # CMSIS-Core component is required
    - component: Device:CubeMX                # Component that connects to CubeMX
    - component: CMSIS Driver:USART           # Add Driver API shim interface

The drivers require configuration with STM32CubeMX. The configuration settings are exemplified in the Driver API Shim Source, but depend on the actual device that is used.

For additional information refer to:

• CMSIS-Toolbox - Configure STM32 Devices with CubeMX for usage information of STM32CubeMX with CMSIS projects. In µVision start CubeMX in dialog Manage Run-Time Environment from the component Device:CubeMX.

• CMSIS-Driver - Theory of Operation describes the usage of CMSIS-Drivers in your application code via an access struct. The driver instances available depend on the CubeMX device configuration as explained in the Driver API Shim Source.
